Tapping in Automotive Parts Manufacturing: The “Industrial Tooth”

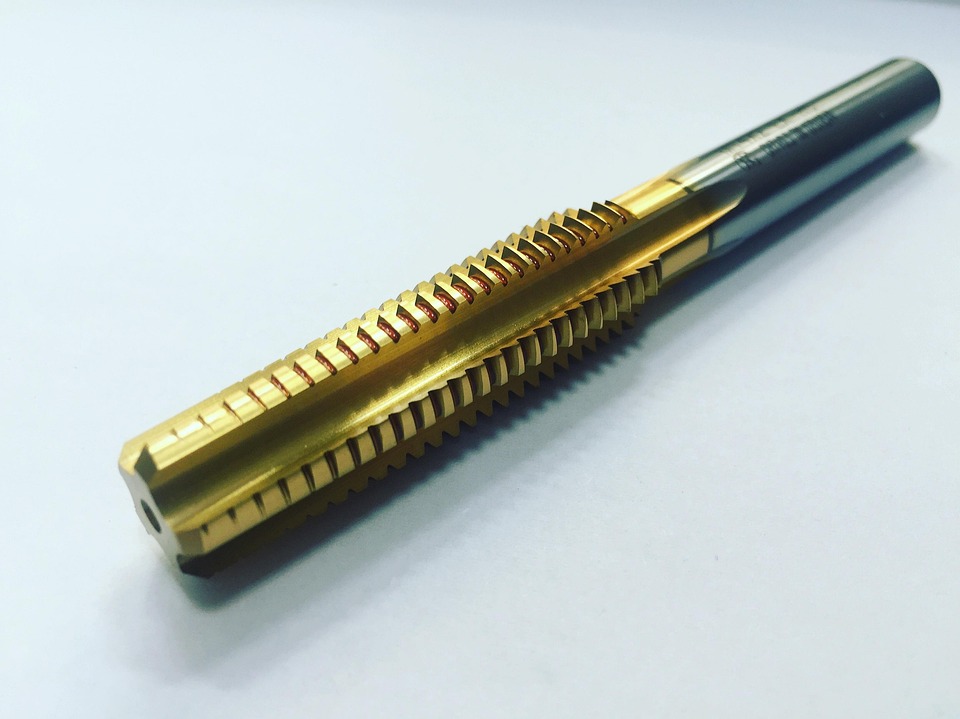

In automotive parts machining, the tap is a critical tool for creating internal threads, often referred to as the “industrial tooth.” Tapping is a key process in machining, as thread quality directly affects the reliability and sealing of subsequent assemblies.

Below is a structured guide covering tap classification and selection, material and coating, common problems, and sales points, designed to help you get up to speed quickly.

I. Tap Classification & Selection (By Machining Method)

This answers the most common customer question: “Which tap do I use for this hole?”

1. Cutting Tap vs. Forming Tap – The Fundamental Distinction

Sales Points:

• For aluminum, low-carbon steel, stainless steel → Recommend forming taps. Emphasize “chip-free processing, higher thread strength, longer tool life.”

• For cast iron, hardened steel → Only cutting taps work.

• Forming taps are ideal for high-volume, high-precision automotive threading (e.g., connecting rods, pistons).

Sales Script: “Since your part is aluminum, a forming tap is the best choice. No chip issues, 30% stronger threads than cutting taps, and much longer tool life.”

2. Three Flute Types for Cutting Taps (By Chip Evacuation Direction)

Quick Selection Guide:

3. By Thread Standard

Sales Points: Always ask three questions first: Thread standard (Metric/Inch)? Through or blind hole? Material? These answers will lock in the tap type.

II. Tap Material & Coating

1. Tap Materials

2. Tap Coatings

Sales Points:

• Stainless steel → Requires TiAlN coating.

• Aluminum → Uncoated/polished (to prevent built-up edge) or TiN.

• Hardened steel → Solid carbide + TiAlN/AlTiSiN coating.

III. Typical Automotive Applications

1. Engine & Transmission Components

2. Chassis & Suspension

3. New Energy (EV) – Motor, Battery, Electronics

IV. Common Customer Questions & Sales Scripts

Q1: “How many holes will your tap last for?”

• ❌ Bad: “1000 holes.”

• ✅ Good: “It depends on conditions—material, hole preparation, cutting data. At one customer, machining M6 in aluminum, they average 20,000 holes per tap. What’s your specific application? I can give you a realistic estimate.”

Note: Forming taps typically last 2-40x longer than cutting taps – a major selling point.

Q2: “Why do my taps keep breaking?”

Q3: “Which is better – forming or cutting tap?”

• Answer: “It depends on the material. Forming taps are better for ductile materials like aluminum or low-carbon steel – no chips, stronger threads, longer life. But for cast iron or hardened steel, you need a cutting tap. What material are you processing?”

Q4: “What cutting parameters should I use?”

Quick Reference Table (Cutting Speed Vc – m/min):

V. Quick Reference Card for New Sales (Save or Print)

Ask the customer three questions:

1. What material? → Cutting vs. forming, and coating type.

2. Through or blind hole? → Flute type (spiral point/spiral flute/straight).

3. Thread specification? → Size and standard (Metric/Inch).

Selection Logic:

Customer Material
├── Aluminum, Low-Carbon Steel, Stainless Steel (ductile) → PRIORITIZE FORMING TAP
│ ├── Blind hole → Spiral flute forming tap
│ └── Through hole → Spiral point forming tap
└── Cast Iron, Hardened Steel, High-Hardness → CUTTING TAP
├── Blind hole → Spiral flute tap
└── Through hole → Spiral point (gun) tap

Material Quick Match:

VI. Summary

The core of tap sales is “matching the tool to the specific job”:

1. Ask about material → Decides cutting vs. forming.

2. Ask about hole type → Decides flute style.

3. Ask about working conditions → Machine, parameters, current problems.

Customers care most about: no breakage, long tool life, high efficiency. Help them solve these three problems, and you win the order.

If you let me know your company’s main tap product line (e.g., primarily forming taps, or general-purpose cutting taps) and the specific automotive part types you target, I can help you further refine product selling points and trial order scripts.
